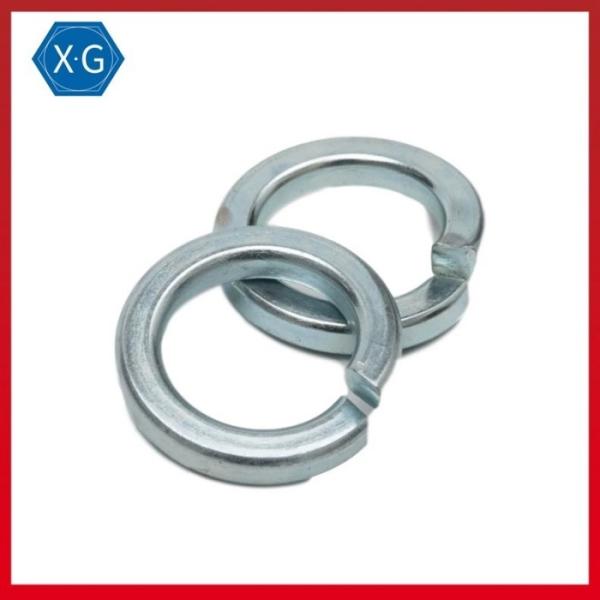

DIN127B Zinc Plated Spring Washers Steel Lock Washers Metric Split Lock Washers

Drawing:

Spring lock washer
DIN 127
d	d(mm)		b(mm)			h(mm)			H(mm)		k(mm)
	min	max	Nom	min	max	Nom	min	max	min	max
φ3	3.1	3.4	1.3	1.2	1.4	0.8	0.7	0.9	1.9	2.1	0.15
φ3.5	3.6	3.9	1.3	1.2	1.4	0.8	0.7	0.9	1.9	2.2	0.15
φ4	4.1	4.4	1.5	1.4	1.6	0.9	0.8	1	2.1	2.5	0.15
φ5	5.1	5.4	1.8	1.7	1.9	1.2	1.1	1.3	2.7	3.2	0.15
φ6	6.1	6.5	2.5	2.35	2.65	1.6	1.5	1.7	3.6	4.2	0.2
φ7	7.1	7.5	2.5	2.35	2.65	1.6	1.5	1.7	3.6	4.2	0.2
φ8	8.1	8.5	3	2.85	3.15	2	1.9	2.1	4.6	5.4	0.3
φ10	10.2	10.7	3.5	3.3	3.7	2.2	2.05	2.35	5	5.9	0.3
φ12	12.2	12.7	4	3.8	4.2	2.5	2.35	2.65	5.8	6.8	0.4
φ14	14.2	14.7	4.5	4.3	4.7	3	2.85	3.15	6.8	8	0.4
φ16	16.2	17	5	4.8	5.2	3.5	3.3	3.7	7.8	9.2	0.4
φ18	18.2	19	5	4.8	5.2	3.5	3.3	3.7	7.8	9.2	0.4
φ20	20.2	21.2	6	5.8	6.2	4	3.8	4.2	8.8	10.4	0.4
φ22	22.5	23.5	6	5.8	6.2	4	3.8	4.2	8.8	10.4	0.4
φ24	24.5	25.5	7	6.75	7.25	5	4.8	5.2	11	13	0.5
φ27	27.5	28.5	7	6.75	7.25	5	4.8	5.2	11	13	0.5
φ30	30.5	31.7	8	7.75	8.25	6	5.8	6.2	13.6	16.1	0.8
φ36	36.5	37.7	10	9.75	10.25	6	5.8	6.2	13.6	16.1	0.8
φ39	39.5	40.7	10	9.75	10.25	6	5.8	6.2	13.6	16.1	0.8
φ42	42.5	43.7	12	11.75	12.25	7	6.75	7.25	15.6	18.4	0.8
φ45	45.5	46.7	12	11.75	12.25	7	6.75	7.25	15.6	18.4	0.8
φ48	49	50.5	12	11.75	12.25	7	6.75	7.25	15.6	18.4	0.8
φ52	53	54.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ56	57	58.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ60	61	62.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ64	65	66.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ68	69	70.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ72	73	74.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ80	81	82.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ90	91	92.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1
φ100	101	102.5	14	13.75	14.25	8	7.75	8.25	18	21.2	1

Zinc Spring Washers are thin spirals with a hole in the middle that is normally used as a nut-locking device.

The zinc coating is suitable for most indoor applications.

As you tighten a bolt, these metric washers flatten to add tension to the threaded joint and prevent loosening from small amounts of vibration. All of these washers meet a DIN or ASME standard for split lock washer dimensions.

Standard split lock washers have a left-hand helix, which means you can only use them with bolts that have right-hand threads to prevent clockwise rotation from vibration. When tightened, their uneven split ends bite into unhardened nuts and bolts for a tighter hold than curved or wave washers, but only for applications with clockwise rotation. The washers, nuts, and bolts will be deformed when untightened, so none of them can be reused. Do not use these washers on hardened surfaces.

Use zinc-plated and yellow zinc-plated steel washers in mostly dry environments. The zinc plating offers temporary rust protection, but once it wears away the steel will rust. All of these washers are stronger and more wear resistant than stainless steel.

Jiangyin XiangGu Hardware Products Co., Ltd. is located in Wuxi City and close to Shanghai Port, with convenient transportation.

Our company handles all kinds of fasteners such as bolts, nuts and washers made of stainless steel, carbon steel and copper.

Xianggu Hardware is committed to integrating the superior supply chain system of various fastener products, focusing on the salesman's mastery of fastener expertise, providing fastener system solutions.

We are willing to become your partner with first-class product quality,first-class service level and competitive price.

Main products:

Stainless steel 18-8,A2-70, A4-70 and A4-80 Hex head bolts,Hex socket head bolts and nuts.

Carbon steel and Alloy steel Hex head cap screws,Hex socket head screws, machine screws, self-tapping screws, Hex flange bolts and Structural bolts with coating Hot-dip galvanized, Dacromet, Blue-white zinc,Yellow zinc.

Product Application Areas:

Our fasteners are widely used in automobiles, ships, wind energy, solar energy, boiler, electronic appliances, machinery and equipment, and construction engineering.
